Specifications for

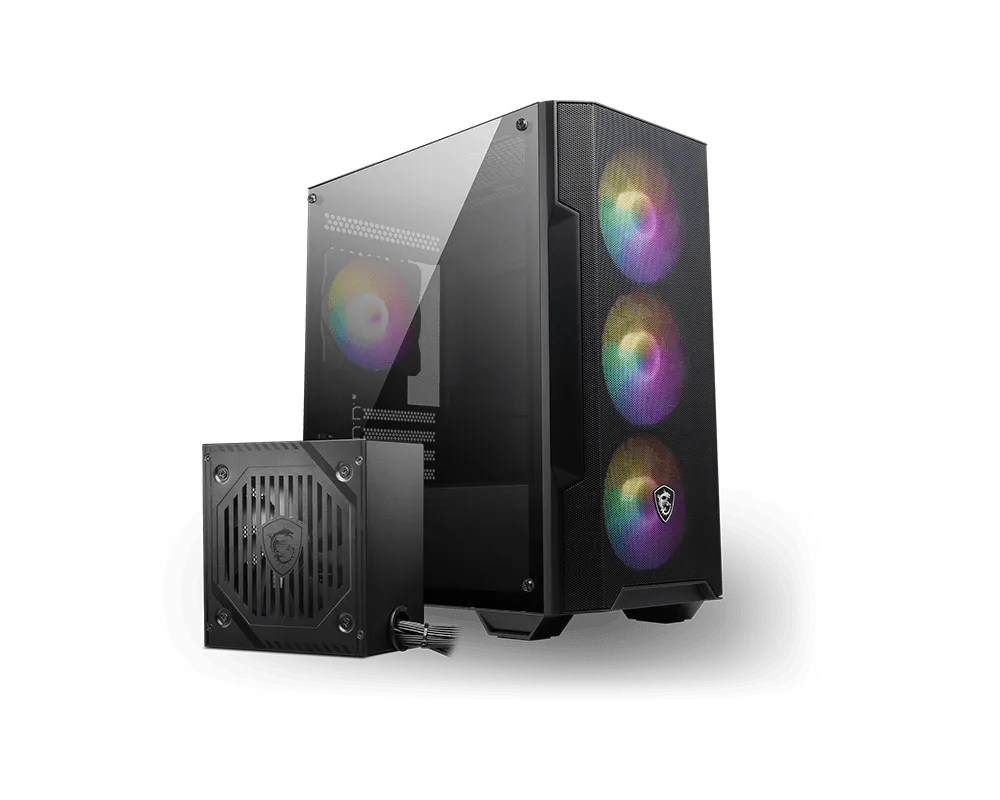

MAG FORGE M100A D60
Form Factor
Form Factor
Micro ATX Tower
Product Name
Product Name
MAG FORGE M100A D60
Dimension
Dimension
388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches
I/O Ports
I/O Ports
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
1x Audio
1x Mic
1x USB 3.2 Gen 1 Type-A
1x Audio
1x Mic
Driver Bays
Driver Bays
2x 2.5"
1x 2.5" / 3.5"
1x 3.5"
1x 2.5" / 3.5"
1x 3.5"
Pre-install Fan
Pre-install Fan
Front: 3 x 120mm
Rear: 1 x 120mm
Rear: 1 x 120mm
Case Expansion Slots
Case Expansion Slots
4
Maximum PSU Length
Maximum PSU Length
300 mm / 11.81 inches (without 3.5" HDD tray installed)
Maximum GPU Length
Maximum GPU Length
300 mm / 11.81 inches
Radiator Layout
Radiator Layout
Front: 120 / 240 mm
Top: 120 / 240 mm
Rear: 120 mm
Top: 120 / 240 mm
Rear: 120 mm
Maximum CPU Cooler Length
Maximum CPU Cooler Length
160 mm / 6.3 inches
Radiator Compatibility
Radiator Compatibility
120 / 140 / 240 mm
Lightning
Lightning
Front: 3 x Auto-RGB Fan
Rear: 1 x Auto-RGB Fan
Rear: 1 x Auto-RGB Fan
Protection
Protection
OCP,OVP,OPP,OTP, SCP,UVP
Input Frequency Range
Input Frequency Range
50~60Hz
Input Voltage Range
Input Voltage Range
110-240V~
PFC Type
PFC Type
Active PFC
Dimensions (D x W x H)
Dimensions (D x W x H)
140mm x 150mm x 86mm / 5.51 x 5.91 x 3.39 inches
Fan Bearing
Fan Bearing
Hydro Bearing
Fan Size
Fan Size
120 mm
Modular
Modular
No
Efficiency Rating
Efficiency Rating
80 PLUS Standard (up to 80%)
Form Wattage
Form Wattage
600W
Power Factor
Power Factor
ATX
Product Name (Power Supply)
Product Name (Power Supply)
MAG A600DN
Gross Weight
Gross Weight
5.69 kg / 12.54 lbs
