Specifications for

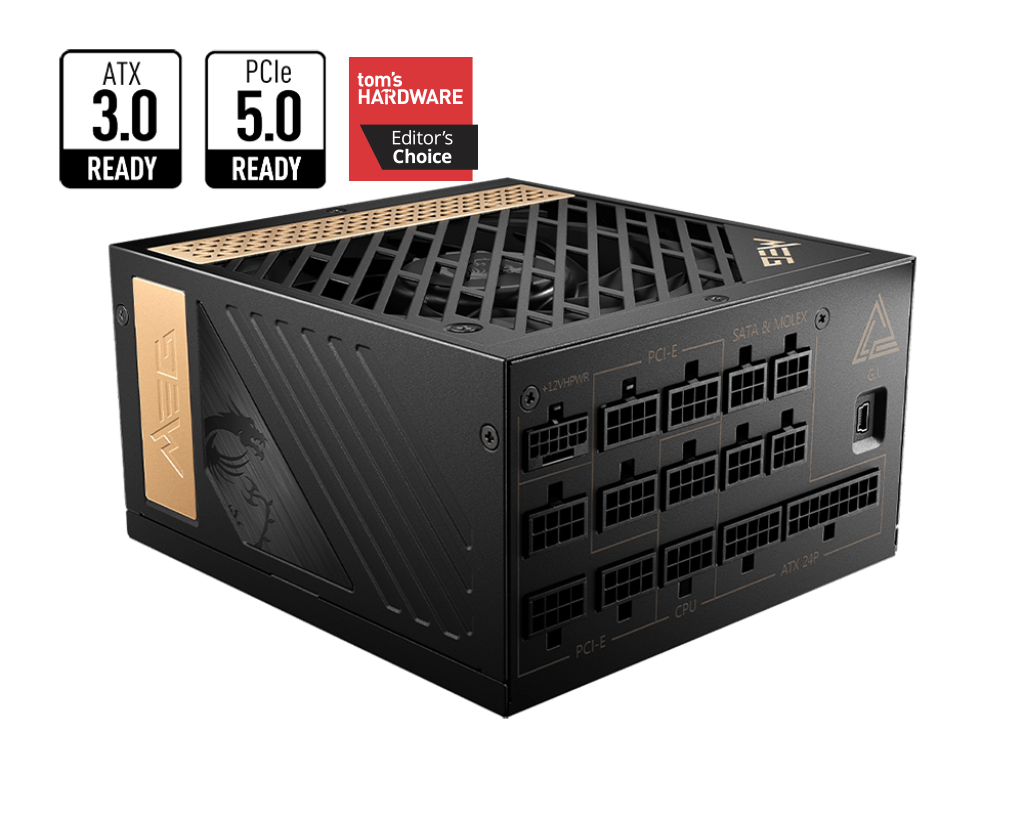

MEG Ai1000P PCIE5
Modular
Modular
Yes (full modular)
Fan Bearing
Fan Bearing
Hydro Dynamic Bearing
Product Name
Product Name
MEG Ai1000P PICE5
Power Watt
Power Watt
1000W
PSU Form Factor
PSU Form Factor
ATX
Power Excursion
Power Excursion
2000W (*up to 200% of the PSU's rated power for 100μs)
Input Voltage
Input Voltage
100-240~
ATX (24 pin)
ATX (24 pin)
1
Input Frequency
Input Frequency
50~60 Hz
EPS (8 pin)
EPS (8 pin)
1
Efficiency
Efficiency
80 PLUS Platinum (up to 92%)
EPS (4+4 pin)
EPS (4+4 pin)
1
PCI-E 5.0 (16 pin)
PCI-E 5.0 (16 pin)
1 (600W)
Fan Size
Fan Size
120 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
8
Dimension
Dimension
160 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
12
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
4
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
FDD (4 pin)
FDD (4 pin)
1
