Specifications for

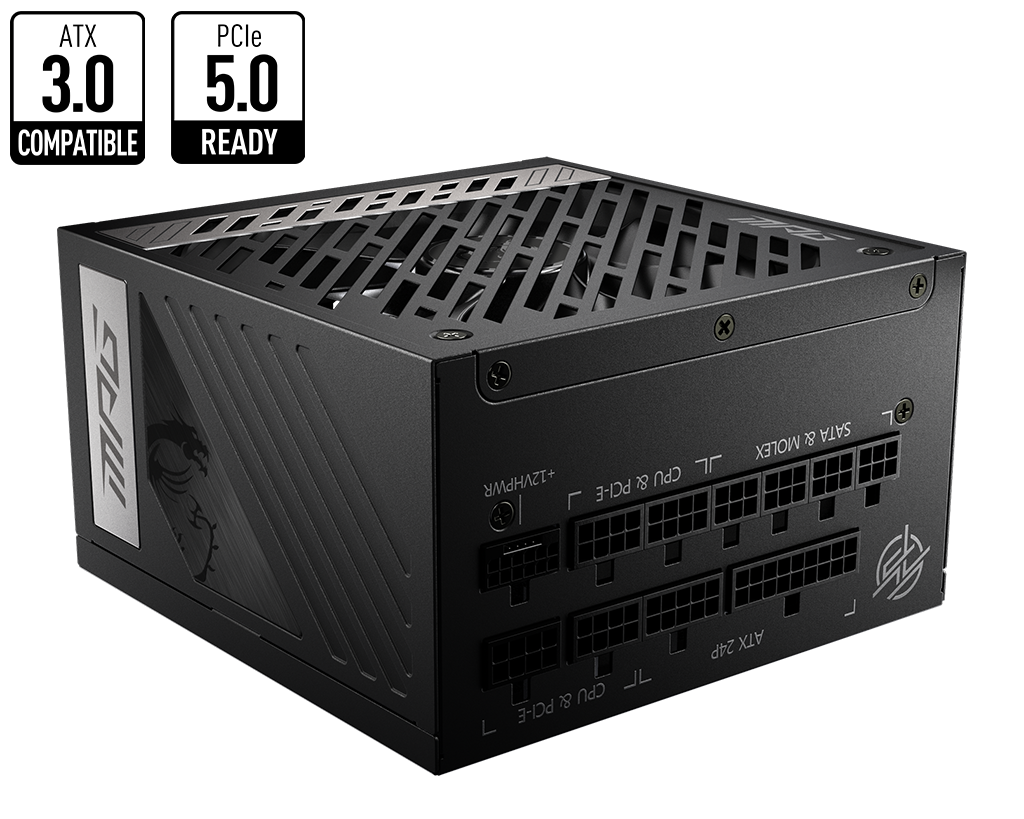

MPG A850G PCIE5
MODEL NAME
MODEL NAME
MPG GUNGNIR 100
Front I/O Ports
Front I/O Ports
2 x USB 3.0 + HD Audio / Mic
Drive Bays
Drive Bays
2 x 3.5" (compatible with 2.5" ) + 4 x 2.5"
VGA Card Support
VGA Card Support
Max 400mm / 15.75 inch
CPU Cooler Support
CPU Cooler Support
Max 170mm / 6.69 inch
Power Supply
Power Supply
Standard ATX
WEIGHT (CARD)
WEIGHT (CARD)
169g
Radiator Compatibility
Radiator Compatibility
120 / 140 / 240 mm
Product Name
Product Name
MPG A850G PCIE5
Modular
Modular
Yes (full modular)
Case Form Factor
Case Form Factor
Mid-Tower
Motherboard Form Factor Support
Motherboard Form Factor Support
EATX (up to 310mmx304.8mm) / ATX / M-ATX / ITX
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
I/O Ports
I/O Ports
2x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 2x2 Type-C
1x HD Audio
1x Mic
1x USB 3.2 Gen 2x2 Type-C
1x HD Audio
1x Mic
Drive Mount Support
Drive Mount Support
2x 2.5”
2x 2.5"/3.5”
2x 2.5"/3.5”
Expansion Slots
Expansion Slots
7
Dimensions
Dimensions
120mm x 120mm x 25.6mm
Maximum GPU Length
Maximum GPU Length
400mm / 15.75 inches
Power Watt
Power Watt
850W
PSU Form Factor
PSU Form Factor
ATX
Maximum CPU Cooler Height
Maximum CPU Cooler Height
185mm / 7.28 inches
Power Excursion
Power Excursion
1700W (*up to 200% of the PSU's rated power for 100μs)
Power Supply Support
Power Supply Support
Standard ATX, max up to 220mm (without 3.5'' HDD tray installed)
Bearing Type
Bearing Type
Hydro-Dynamic Bearing
Input Voltage
Input Voltage
100-240
Rated Speed
Rated Speed
500 - 1800 ±15% RPM
Fan Size Support
Fan Size Support
Front: Up to 3 x 120 mm / 3 x 140 mm
Top: Up to 3 x 120 mm / 3 x 140 mm
Rear: Up to 1 x 120 mm / 1x 140 mm
Side: Up to 3 x 120 mm
Top: Up to 3 x 120 mm / 3 x 140 mm
Rear: Up to 1 x 120 mm / 1x 140 mm
Side: Up to 3 x 120 mm
Air Flow
Air Flow
19.79 - 71.27 CFM
ATX (24 pin)
ATX (24 pin)
1
Input Frequency
Input Frequency
50~60 Hz
Pre-installed Fan Size
Pre-installed Fan Size
Front: 3x 140mm ARGB Fan
Rear: 1x 140mm ARGB Fan
Rear: 1x 140mm ARGB Fan
Static Air Pressure
Static Air Pressure
0.16 - 2.09 mm-H20
Efficiency
Efficiency
80 PLUS Gold (up to 90%)
Pre-installed Fan Type
Pre-installed Fan Type
ARGB
Connector
Connector
4-Pin PWM/DC
EPS (4+4 pin)
EPS (4+4 pin)
2
Radiator Size Support
Radiator Size Support
Front: 120 / 140 / 240 / 280 / 360 mm
Top: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 / 140 mm
Side: 120 / 240 / 360 mm
Top: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 / 140 mm
Side: 120 / 240 / 360 mm
Life Expectancy
Life Expectancy
MTTF 150,000 Hours (25℃)
PCI-E 5.0 (16 pin)
PCI-E 5.0 (16 pin)
1 (600W)
Fan Size
Fan Size
135 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
6
Dimension
Dimension
150 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
8
PFC Type
PFC Type
Active PFC
Net Weight
Net Weight
15.95 kg / 35.16 lbs
PRODUCT DIMENSIONS (MM)
PRODUCT DIMENSIONS (MM)
510(D) x 227(W) x 525(H) mm
20.08(D) x 8.94(W) x 20.67(H) inch
20.08(D) x 8.94(W) x 20.67(H) inch
MOLEX (4 pin)
MOLEX (4 pin)
4
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
Gross Weight
Gross Weight
21.55 kg / 47.51 lbs
FDD (4 pin)
FDD (4 pin)
1
Note
Note
Material: Left Side: Tempered Glass/ Right Side- Metal
Vertical GPU Mount : Yes
Touch Panel: Yes
Vertical GPU Mount : Yes
Touch Panel: Yes
